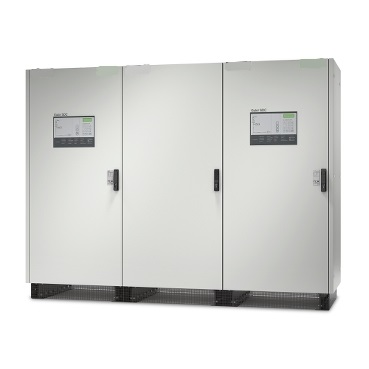

Model

ON-01

ON-02

ON-03

ON-04

ON-05

ON-06

ON-075

ON-10

KVA

1

2

3

4

5

6

7.5

10

Capacity

800W

1600W

2400W

3200W

4000W

4800W

6000W

8000W

Version No.

41-2

41-2

41-2

41-2

37-2

37-2

37-2

37-2

Specifications

AC INPUT

Input voltage

230 VAC + 20 %

Input Frequency

50 Hz +/- 6 %

Input Power factor

0.85 to Unity*

DC CHARGER

Battery Voltage (Customizable)

36V

48V

72V

96V

120-144V

120-144V

144-180V

180-192V

Rectifier

IGBT based PFC Type*

AC OUTPUT

Output voltage

230 VAC +/- 1 %

Output Frequency

50 Hz +/-0.5 %

Output Power factor

0.8 to 1 lag

Output waveform

PWM Sine wave

Galvanic Isolation

Inbuilt Galvanic Isolation Transformer Provided

Harmonic Distortion

Less than 3 % on Linear Load

Transient Recovery

.+ 4 % from 0 to Full load and corrected within 60 msec.

Inverter Efficiency

85 % - 90 % Depending on DC voltages

INDICATIONS & ALARMS


Indications

Mains on, Inverter On, Battery Low, Over Load, Output Under Voltage, Output Over Voltage, DC Over Voltage

Audible Alarm

Intermittent beep for 30 sec. On mains fail. Battery low pre-alarm at 80 % of Battery discharge. Intermittent Beep for all other Trip Conditions

METERING (Optional)

Digital Metering and Fault Indications

Micro controller based Digital Scrolling LCD to Display* - I/P voltage , O/P Voltage, Load Current, Load %, Charging Current, Battery Voltage, % Battery Charge. Fault indications � Mains Off, Inverter Off, O/p under voltage / over voltage, Battery Low pre-alarm & Trip, DC Over voltage, Output Overload.

PROTECTIONS

Protections

Output Overload, Output short circuit, Battery low trip, DC over voltage, Output under voltage / over voltage.

ADDITIONAL FEATURES




Communication*

GSM Modem for SMS Alerts to user and service center for any Fault conditionPC Interface (SNMP) to display UPS Data on user PC and Safe Shutdown facility

GENERAL

Bypass Facility

Manual / Static Bypass Switch*

Audible Noise

Less Than 50 dB at 1 meter

Design ambient

0-50o C

Relative Humidity

Max. 95 % Non Condensing

Enclosure

M.S. Powder coated with castor wheels.

Dimensions in mm (LxWxH)

600x280x550

650x370x650

770 x420 x750

NOTE: Specifications subject to change due to continuous improvements in the product.

SPECIFICATIONS

AC INPUT

Input voltage

415 VAC +15 %, -20 %

Input Frequency

50 Hz +/- 6 %

Input Power Factor

> 0.85

DC CHARGER

Battery Voltage

240 - 360 V

360 V

Rectifier

IGBT Based APFC type / SCR 6 pulse

AC OUTPUT

Technology

IGBT Based Double Conversion PWM Inverter using Micro Controller

Output voltage

230 VAC +/- 1 %

Output Frequency

50 Hz +/- 0.5 %

Output Power factor

0.8 to 1 lag

Output waveform

PWM Sine wave

Galvanic Isolation

Inbuilt Galvanic Isolation Transformer Provided

Harmonic Distortion

Less than 3 % on Linear Load

Transient Recovery

.+ 4 % from 0 to Full load and corrected within 60 msec.

Inverter Efficiency

> 90 - 92 % Depending on DC voltage

INDICATIONS & ALARMS

Indications

Mimic Display, Mains on, Inverter On, Battery Low, Over Load, Output Under Voltage, Output Over Voltage, DC Over Voltage, I/p Single Phasing / Phase Reversal

Audible Alarm

Intermittent beep for 30 sec. On mains fail. Battery low pre-alarm at 80 % of Battery discharge. Intermittent Beep for all other Trip Conditions

METERING

Digital Metering and Fault Indications

Micro controller based Digital Scrolling LCD to Display - I/P voltage , O/P Voltage, Load Current, Load %, Charging Current, Battery Voltage, % Battery Charge. Fault indications Mains Off, O/p under voltage / over voltage, Battery Low pre-alarm & Trip, DC Over voltage, Output Overload, I/p under voltage / over voltage, I/p Single Phasing / Phase Reversal

PROTECTIONS

Protections

Output Overload, Output short circuit, Battery low trip, DC over voltage, Output under voltage / over voltage, Input under voltage / over voltage, I/p Single Phasing / Phase Reversal

ADDITIONAL FEATURES

Communication*

GSM Modem for SMS Alerts to user and service center for any Fault condition.PC Interface (SNMP) to display UPS Data on user PC and Safe Shutdown facility

Input Auto Phase Corrector*

Input Auto Phase Correction in case of Phase Reversal

GENERAL

Bypass Facility*

Manual / Static Bypass Switch

Audible Noise

Less Than 60 dB at 1 meter

Design ambient

0-50o C

Relative Humidity

Max. 95 % Non Condensing

Enclosure

M.S. Powder coated with castor wheels

Dimensions in mm (LxWxH)

770x420x750

1200x450x800

1200x570x1000

950x450x800
