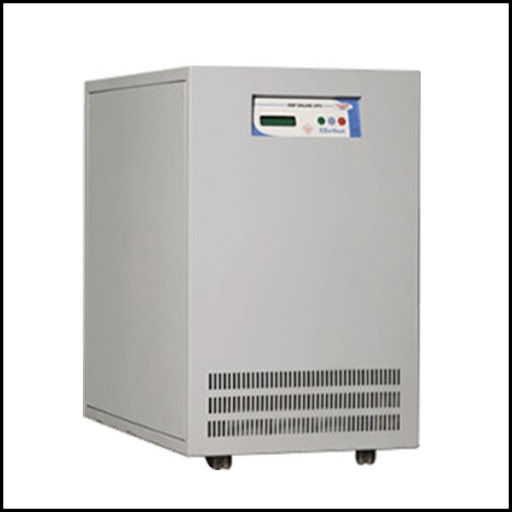

LIFT UPS is an OFF LINE UPS which has 3 main parts namely – Charger, Inverter and Batteries. As majority of Elevators use three phase power supply, the UPS also is three phase input and three phase output type. The LIFT UPS takes three phase supply and feeds to Elevator simultaneously charging the batteries. In case of a power cut, the inverter turns on battery mode and generates three phase output to feed the load. This transition takes place within a time period of 15-20 seconds depending upon the configuration of the variable frequency drive (VFD / V3F) used by the elevator. When the mains supply or utility gets restored, the elevator is transferred automatically to mains supply and battery charging starts. Depending upon the size and number of batteries the backup time can be extended from 2-3 Hours up to 8 Hours too.
| Model | ELOS-06 | ELOS-08 | ELOS-12 | ELOS-15 | ELOS-20 | ELOS-25 | ELOS-30 | ELOS-40 |
|---|---|---|---|---|---|---|---|---|
| KVA | 6 | 8 | 12 | 15 | 20 | 25 | 30 | 40 |
| Capacity (Balanced Load) |
4.8 KW | 6.4 KW | 9.6 KW | 12 KW | 16 KW | 20 KW | 24 KW | 32 KW |
100 % Unbalanced Laod* (optional)
| Input voltage | Input Frequency |
|---|---|
| 415 VAC +15, - 20 % / 230VAC +15, -20% * | 50 Hz +/- 6 % |
| Battery Voltage 72V-96V , 96V-180V | 240V-360V, 360V, 144V - 240V |
|---|---|
| Rectifier | ATM Tech. Boost and Float mode |
| Technology |
Mosfet / IGBT Based PWM Inverter using Micro Controller |
|---|---|
| Output voltage | 400 VAC +/- 2 % |
| Output Frequency | 50 Hz +/- 0.5 % |
| Output Power factor | 0.8 to 1 lag |
| Output waveform | PWM Sine wave |
| Phase Displacement | 120⁰ + 1⁰ |
| Crest Factor | 4 : 1 |
| Galvanic Isolation | Inbuilt Galvanic Isolation Transformer Provided |
| Harmonic Distortion | Less than 3 % on Linear Load |
| Transient Recovery | + 4 % from 0 to Full load and corrected within 60 msec. |
| Inverter Efficiency | 87 % - 93 % Depending on DC voltages |
| Indications | Audible Alarm |
|---|---|
| Mimic Display*, Mains on, Inverter On, Battery Low, Over Load, Output Under Voltage, Output Over Voltage, DC Over Voltage, I/p Single Phasing / Phase Reversal | Intermittent beep for 30 sec. On mains fail. Battery low pre-alarm at 80 % of Battery discharge. Intermittent Beep for all other Trip Conditions |
| eARD |
|---|
| Micro controller based Wireless Digital Scrolling with Voice messeging - To Display the status - Lift is running on Mains, Lift on Battery, Battery % charge remaining, Battery Low Pre-alarm, Battery Low - DO NOT USE LIFT, Mains Supply Single Phasing- Call Electricity Board PH. No.---, Mains Supply Phase Reversal - Call Electrician PH. No.----, Project Developed By ----, RENUTRON Service Helpline No. 9371776979 |
| Digital Metering and Fault Indications |
|---|
| Micro controller based Digital Scrolling LCD to Display* - I/P voltage , O/P Voltage, Load Current, Load %, Charging Current, Battery Voltage, % Battery Charge. Fault indications – Mains Off, O/p under voltage / over voltage, Battery Low pre-alarm & Trip, DC Over voltage, Output Overload, I/p under voltage / over voltage, I/p Single Phasing / Phase Reversal |
| Protections |
|---|
| Output Overload (110% -Continuous, 150% - 30 Sec, 300% - 5 seconds), Output short circuit, Battery low trip, DC over voltage, Output under voltage / over voltage, Input under voltage / over voltage, I/p Single Phasing / Phase Reversal, Over Temperature, Input Surge Protection through MOV, Common ELCB at UPS output for multiple Lifts* |
